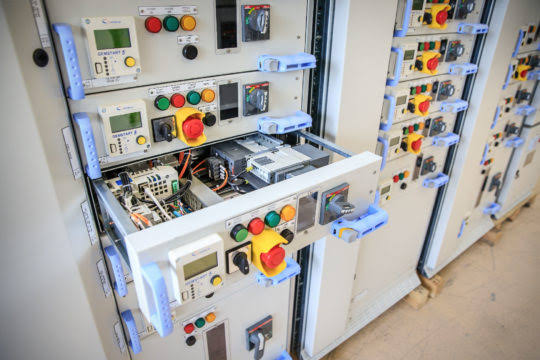

COMECA Galaxis low voltage switchgear cabinet with modular withdrawable drawers in an industrial plant.
Electricity powers modern industry, from automated production lines to critical data centres. At the centre of this power infrastructure sits low voltage switchgear. As a global leader in electrical distribution, COMECA engineers industry-grade systems that control, protect, and distribute power safely across your facility.
In this guide, you will learn how selecting the right COMECA low voltage switchgear system and maintaining it properly prevents costly operational downtime, protects personnel from electrical hazards, and future-proofs your operations.
1. Global Standards & Rating Specifications
In industrial facilities, low voltage switchgear performance is governed by key international standards:
- UL 1558 (Metal-Enclosed Switchgear): Heavy-duty design featuring draw out power circuit breakers and individual compartment segregation.
- UL 891 (Switchboards): Built for general power distribution where draw out breaker access isn’t required. .
- IEC 61439: The international standard focused on design verification and internal separation (Forms 1–4). Every COMECA switchgear assembly adheres to strict IEC 61439 Standards Guidelines to guarantee maximum operator safety.
Understanding Ratings: SCCR vs. kAIC
- Short-Circuit Current Rating (SCCR): The maximum fault current the entire switchgear assembly can safely withstand under NEC 408.6 guidelines.
- Ampere Interrupting Capacity (kAIC): The maximum fault current an individual circuit breaker can safely interrupt.
2. Choosing Architecture: Fixed vs. COMECA Modular, LV Switchgear
Selecting between traditional fixed and modern modular low voltage switchgear impacts long-term operational costs and expansion capabilities:
| Feature | Traditional Fixed Switchgear | COMECA Modular LV Switchgear |
| Upfront Cost | Lower initial hardware cost | Moderate initial investment |
| Downtime | Requires major system shutdowns | Drawout units allow safe hot-swapping |
| Scalability | Rigid layout; expensive to expand | Plug-and-play bay expansion |

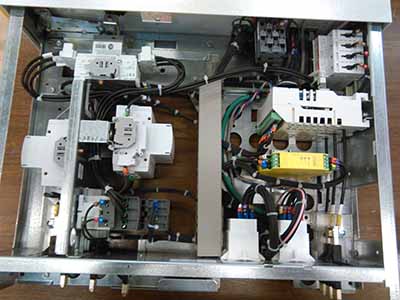

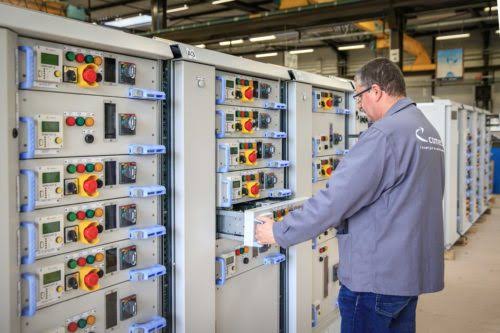

COMECA’s flagship Galaxis Modular Series future-proofs your facility. By letting you add withdrawable breaker drawers incrementally, your business can scale capacity alongside growth without major planned outages.
3. How to Prevent LV Switchgear Failure
Electrical failure rarely occurs without early warning signs. COMECA systems help address these primary root causes to keep operations running smoothly:
Thermal Cycling: Load changes loosen mechanical connections over time, increasing electrical resistance and creating severe heat buildup.
Insulation Breakdown: Dust, humidity, and chemical contaminants degrade dielectric insulation, leading to flashovers. Using proper IP/NEMA enclosures keeps internal components clean.
Transient Overvoltages: Grid spikes stress solid-state trip units. Installing Surge Protection Devices (SPDs) mitigates these voltage surges.
4. Predictive & Preventive Maintenance Schedule
Avoid relying on reactive maintenance, which leads to unexpected blackouts. Follow this structured maintenance protocol for your COMECA equipment:
Monthly / Quarterly: Perform visual checks, inspect door seals, and verify ambient climate control.
Annual: Conduct infrared thermography audits under load to spot loose joints before insulation breaks down.
Every 3–5 Years: Perform Lockout/Tagout (LOTO) and primary current injection testing to verify circuit breaker trip curves.
5. Frequently Asked Questions
Can legacy switchgear be retrofitted with smart condition monitoring?
Yes. Non-invasive wireless thermal sensors and IoT current transducers can be integrated into existing COMECA panels to track busbar heat without requiring a complete system replacement.
How do temperature and altitude affect switchgear ratings?
Altitudes above 2,000 meters (where thinner air reduces cooling) and ambient temperatures exceeding 40°C require current derating to prevent equipment overheating.
Conclusion
Investing in compliant, modular low voltage switchgear backed by continuous thermal monitoring ensures maximum uptime, protects your workforce, and keeps your industrial facility prepared for future growth.
